RS485 CAN HAT para Raspberry Pi 4B/3B+/3B/2B/B+/A+/Zero/Zero W/WH, Comunicación a Larga Distancia

Marca: Waveshare
Nombre del modelo: RS485 CAN HAT
Modelo de CPU: MediaTek MT8125
Tecnología de conectividad: GPIO
Componentes incluidos: RS485 CAN HAT, paquete de tornillos RPi (2 piezas), recursos de desarrollo y manual (ejemplos en cableado/python)Ver más
Sistema operativo: Linux
Fabricante de CPU: ARM
Estándar de comunicación inalámbrica: Bluetooth
Dispositivos compatibles: Raspberry Pi 4B, Raspberry Pi 3B+, Raspberry Pi 3B, Raspberry Pi 2B, Raspberry Pi B+, Raspberry Pi A+, Raspberry Pi Zero, Raspberry Pi Zero W, Raspberry Pi WHVer más
Tecnología de memoria RAM: LPDDR4

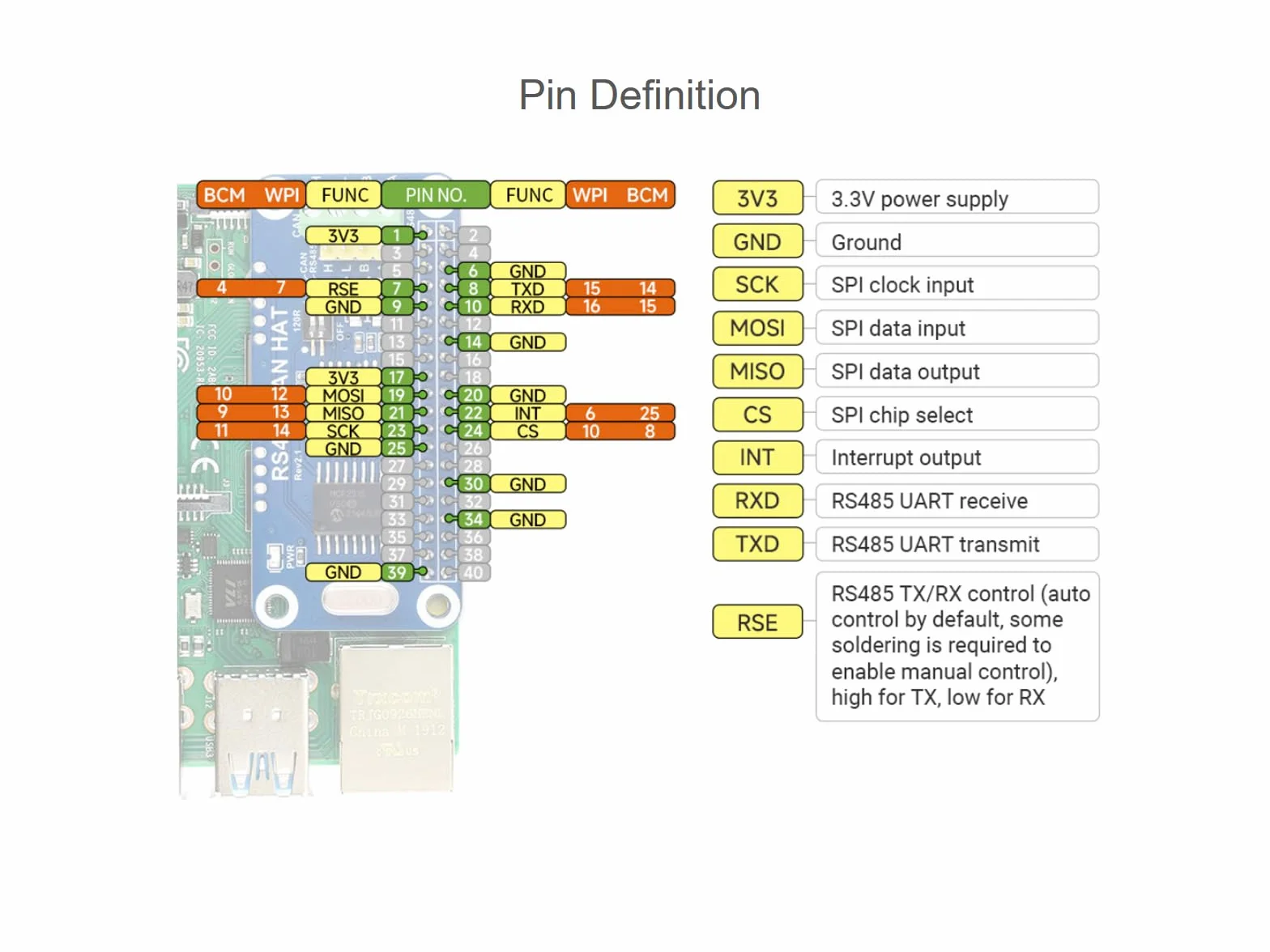

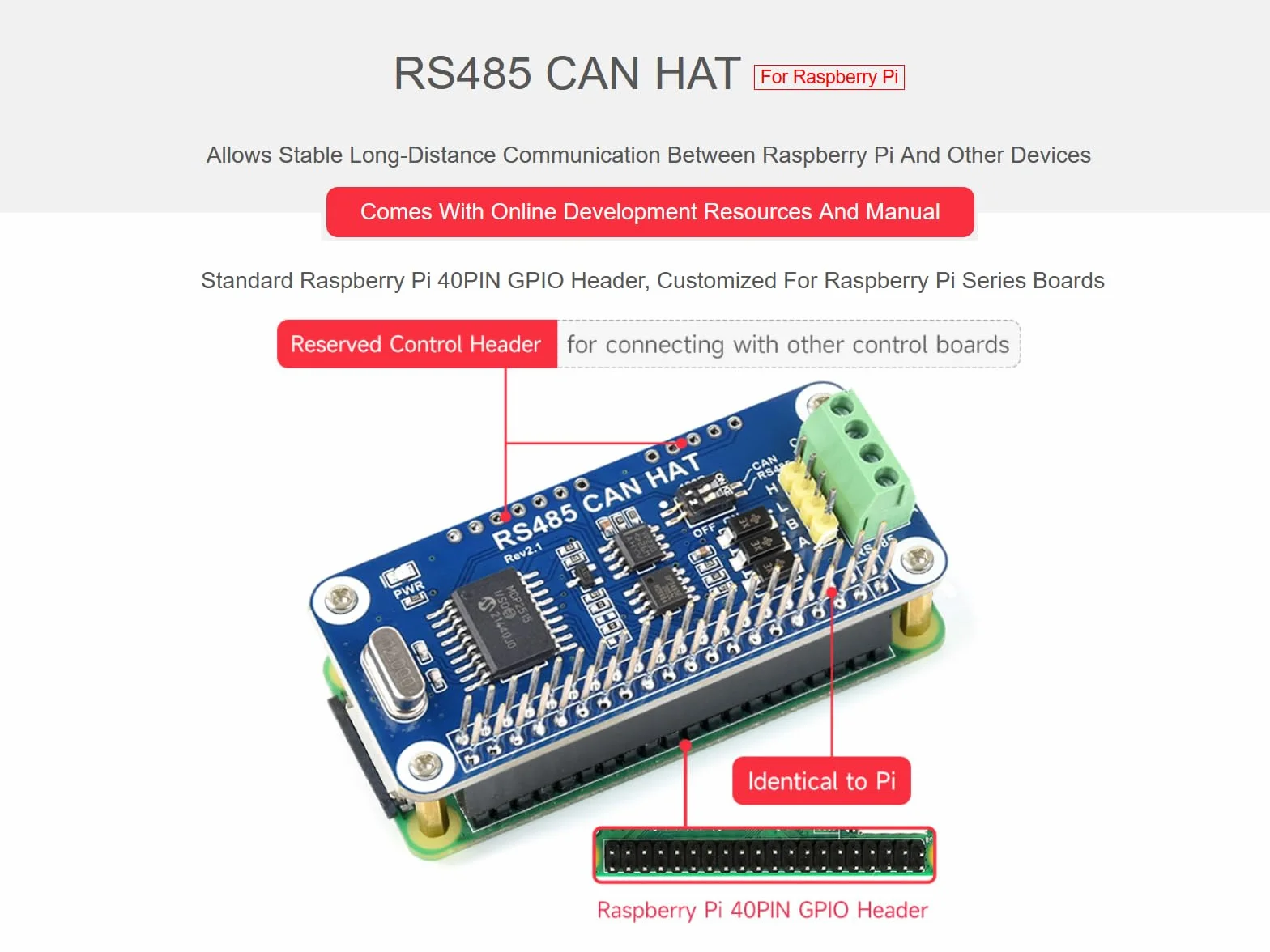

- RS485 CAN HAT for Raspberry Pi 4B/3B+/3B/2B/B+/A+/Zero/Zero W/WH, with standard Raspberry Pi 40PIN GPIO extension header

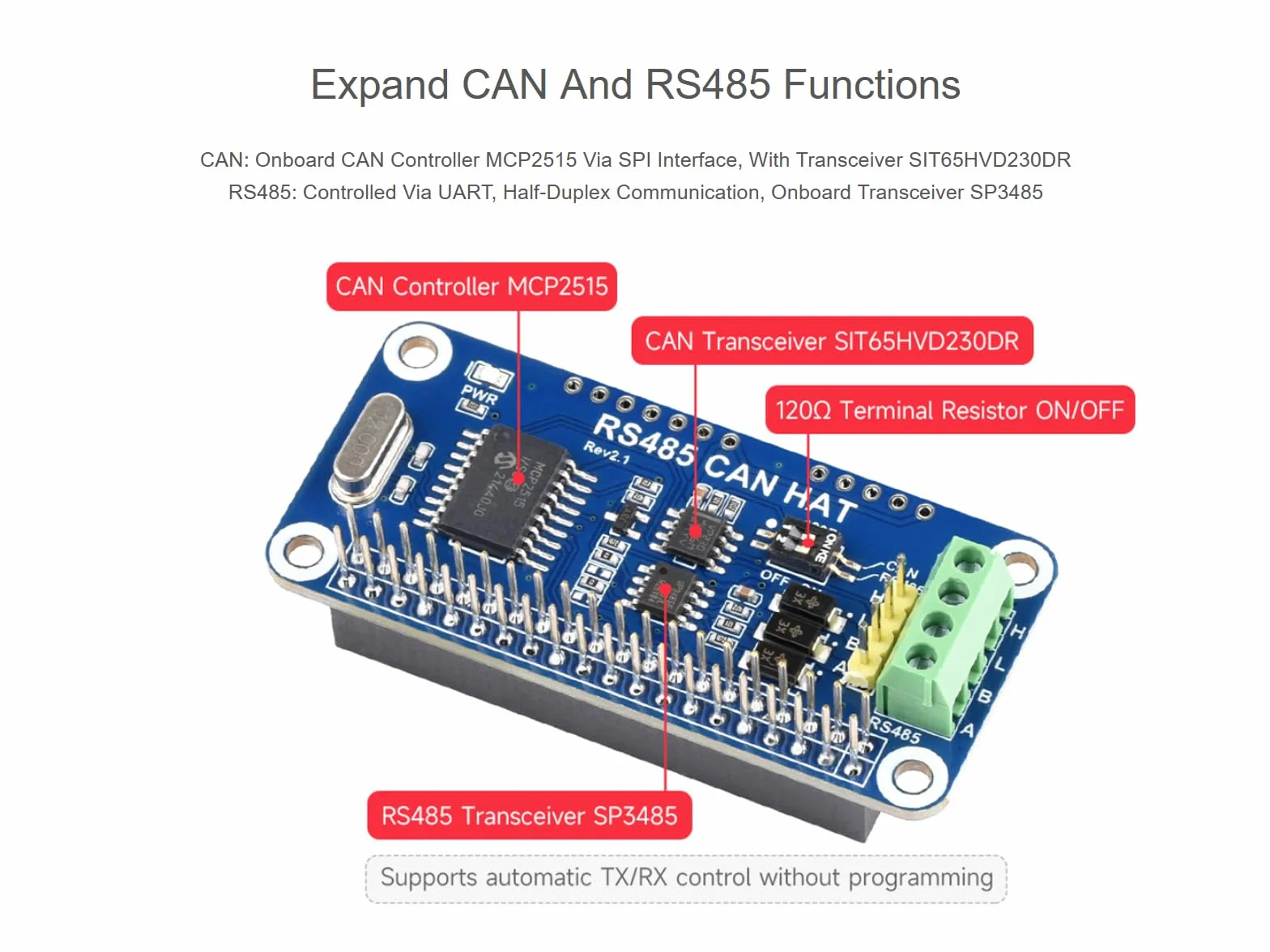

- CAN function, onboard CAN controller MCP2515 via SPI interface, onboard transceiver SN65HVD230
- RS485 function, controlled via UART, half-duplex communication, supports automatic TX/RX control without programming, onboard transceiver SP3485

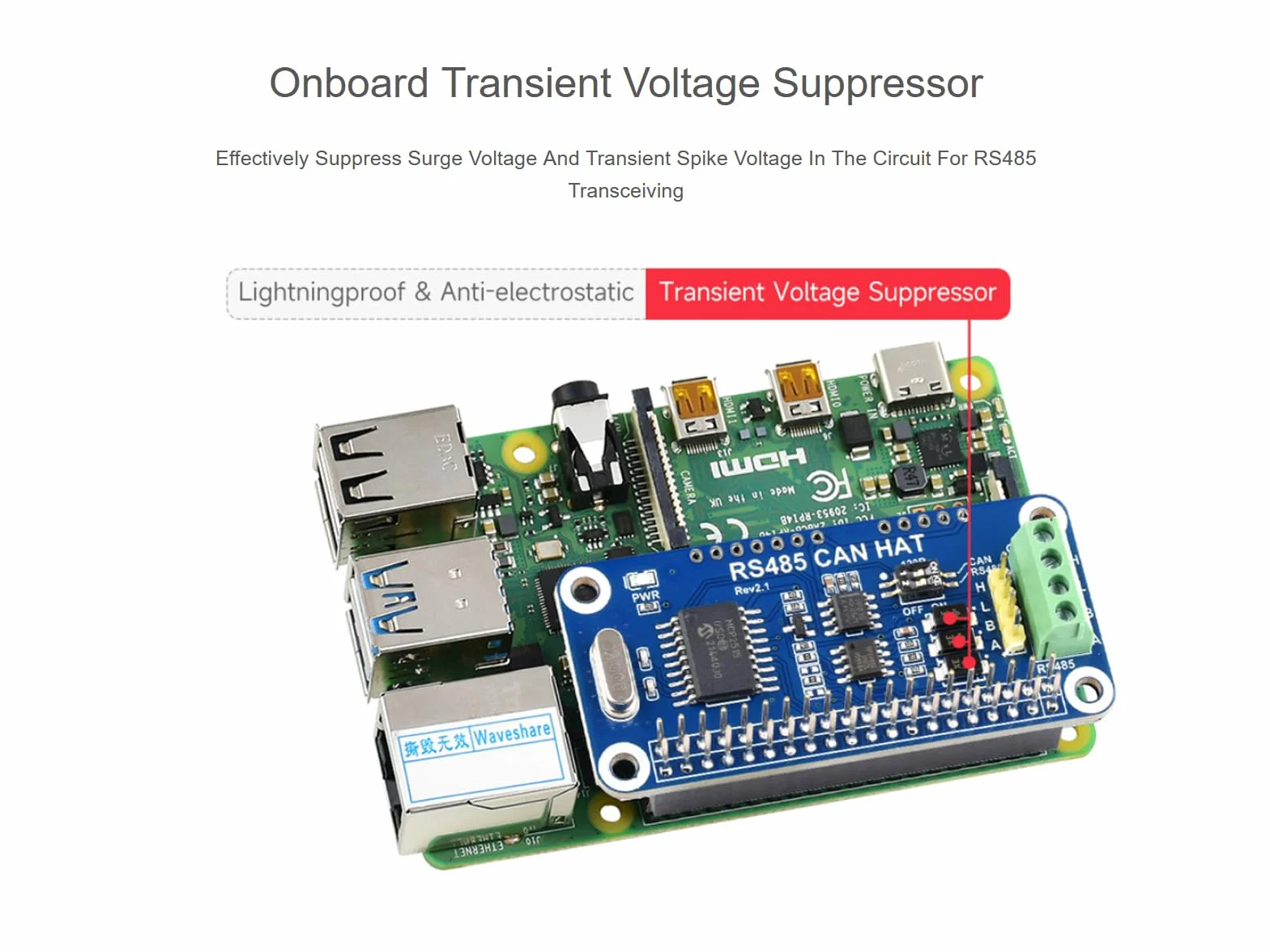

- Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit for RS485 transceiving, lightningproof & anti-electrostatic
- Reserved control pins, allows to work with other control boards, comes with development resources and manual (examples in wiringPi/python)
