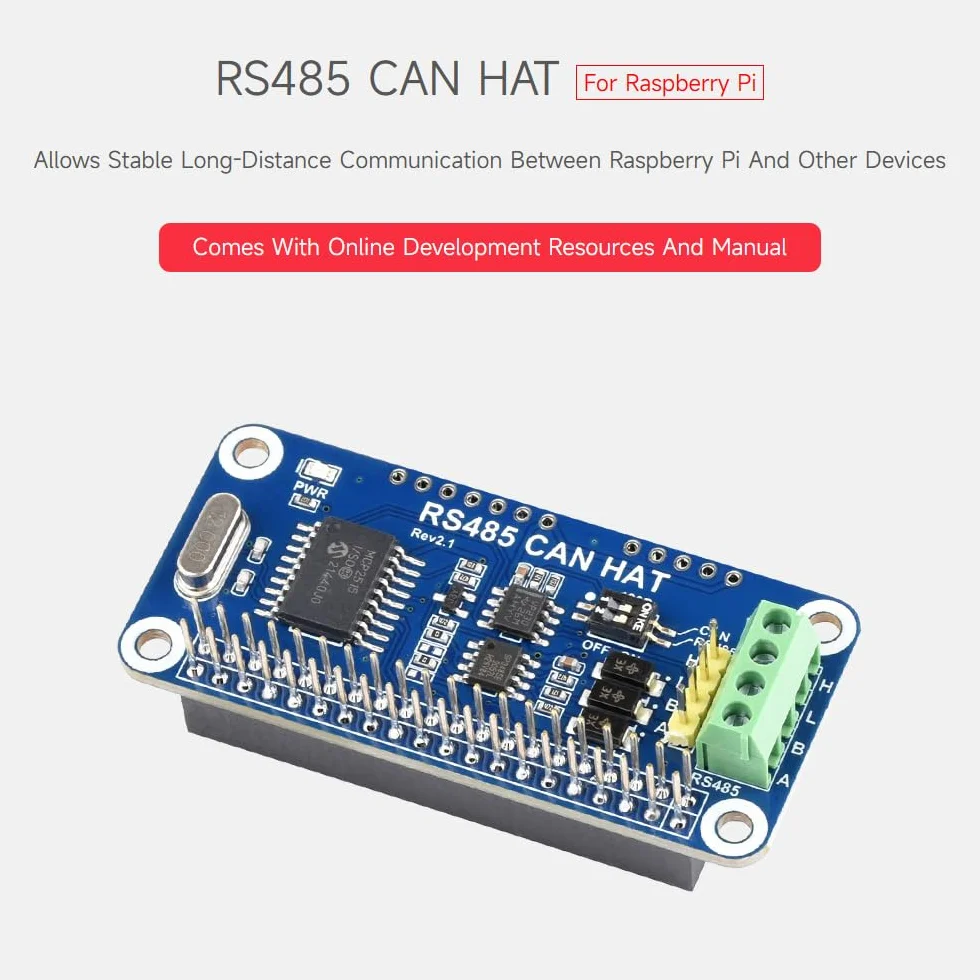

Waveshare RS485 CAN HAT for Raspberry Pi Zero/Zero W/Zero WH/2B/3B/3B+ Long Distance Communication

Marca: Waveshare
Nombre del modelo: 14882
Modelo de CPU: Core i5 3210M
Velocidad de CPU: 333
Tecnología de conectividad: CAN, RS485
Componentes incluidos: RS485 CAN HAT, RPi screws pack (2 unidades)
Sistema operativo: Linux
Fabricante de CPU: VIA
Dispositivos compatibles: Raspberry Pi Zero, Raspberry Pi Zero W, Raspberry Pi Zero WH, Raspberry Pi 2B, Raspberry Pi 3B, Raspberry Pi 3B+Ver más
Tecnología de memoria RAM: DDR3

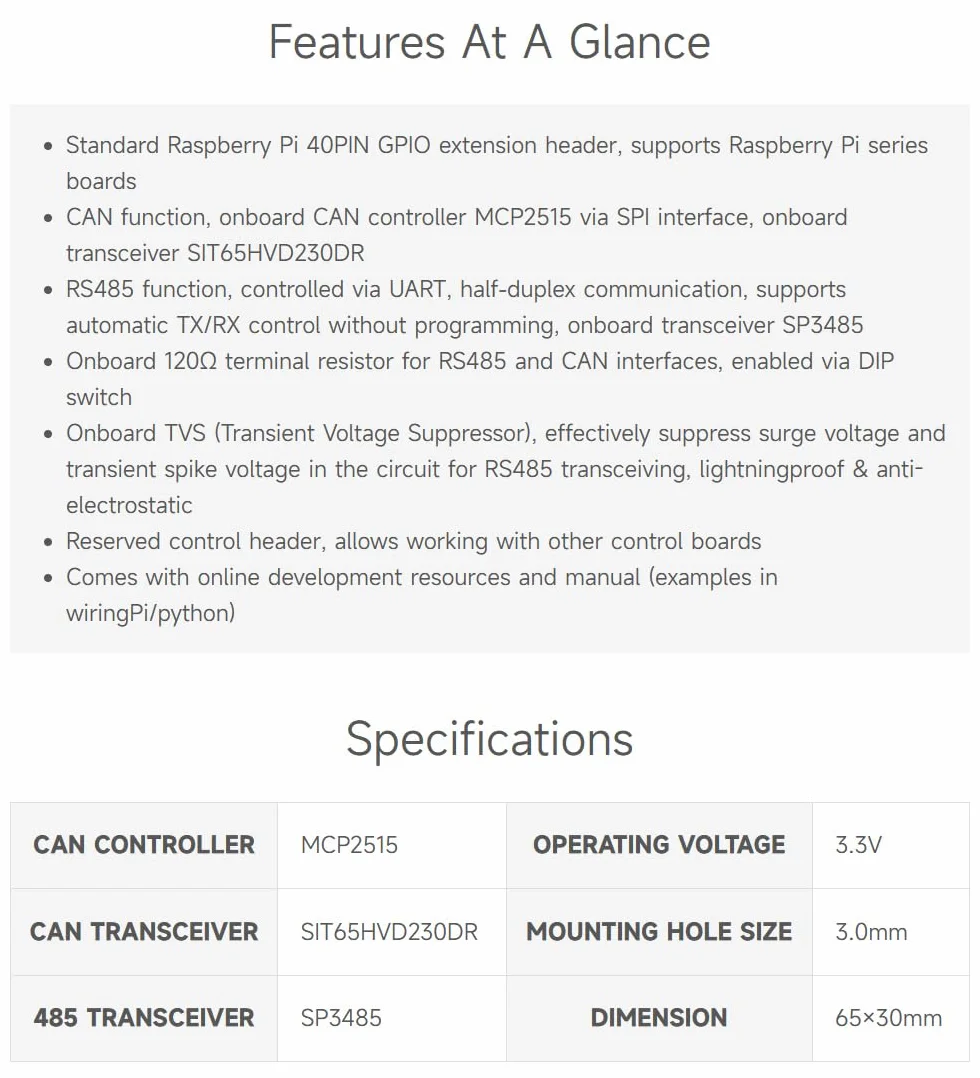

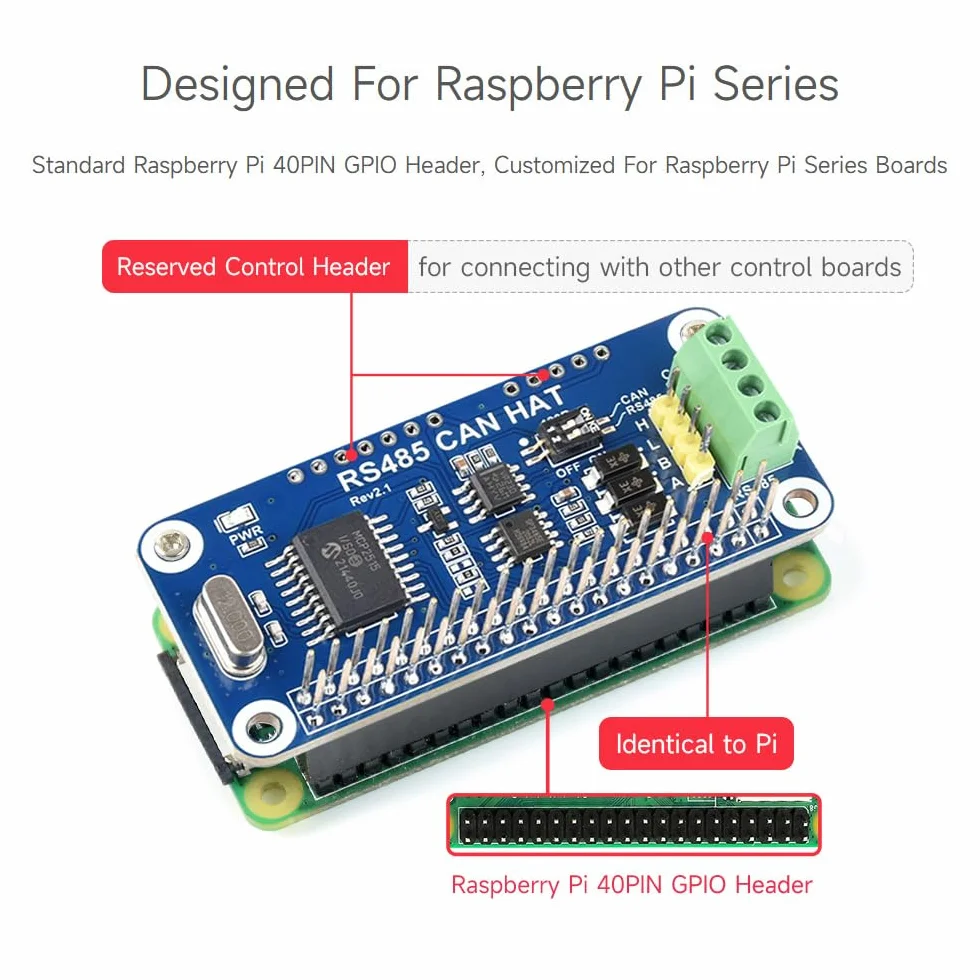

- Raspberry Pi connectivity, compatible with Raspberry Pi Zero/Zero W/Zero WH/2B/3B/3B+

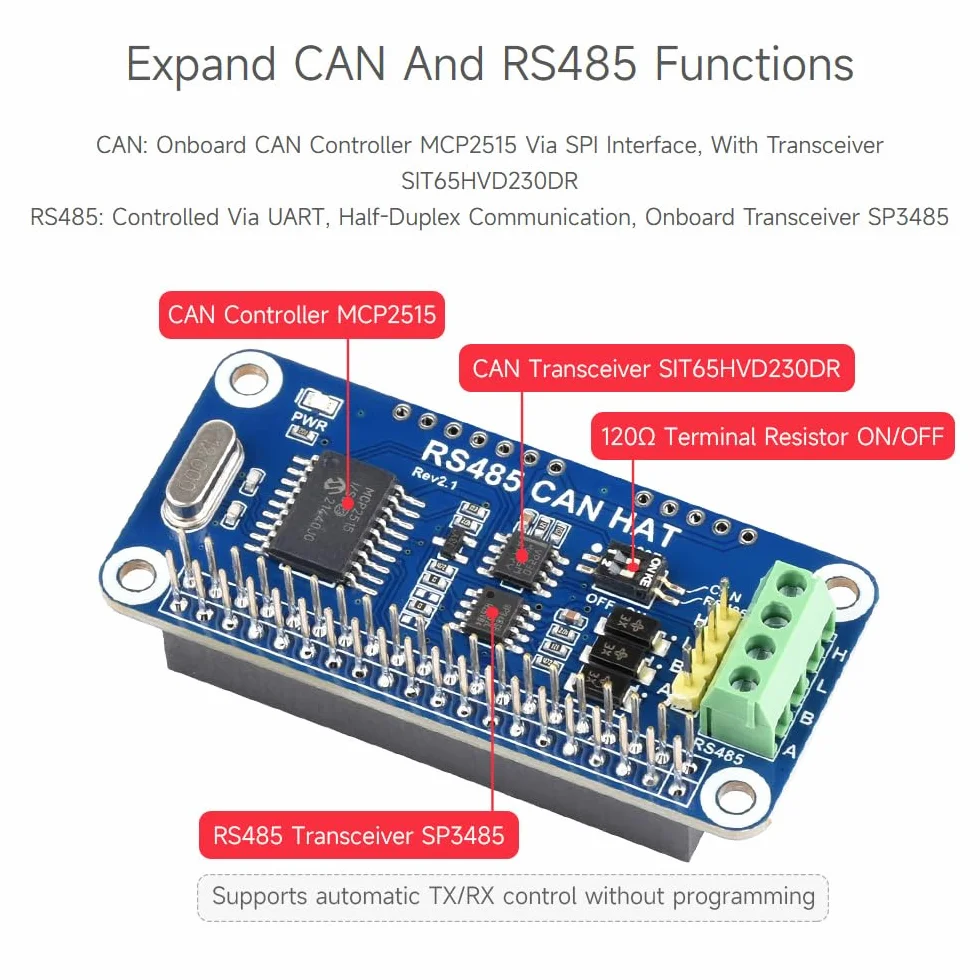

- CAN function, onboard CAN controller MCP2515 via SPI interface, with transceiver SN65HVD230
- RS485 function, controlled via UART, half-duplex communication, with transceiver SP3485

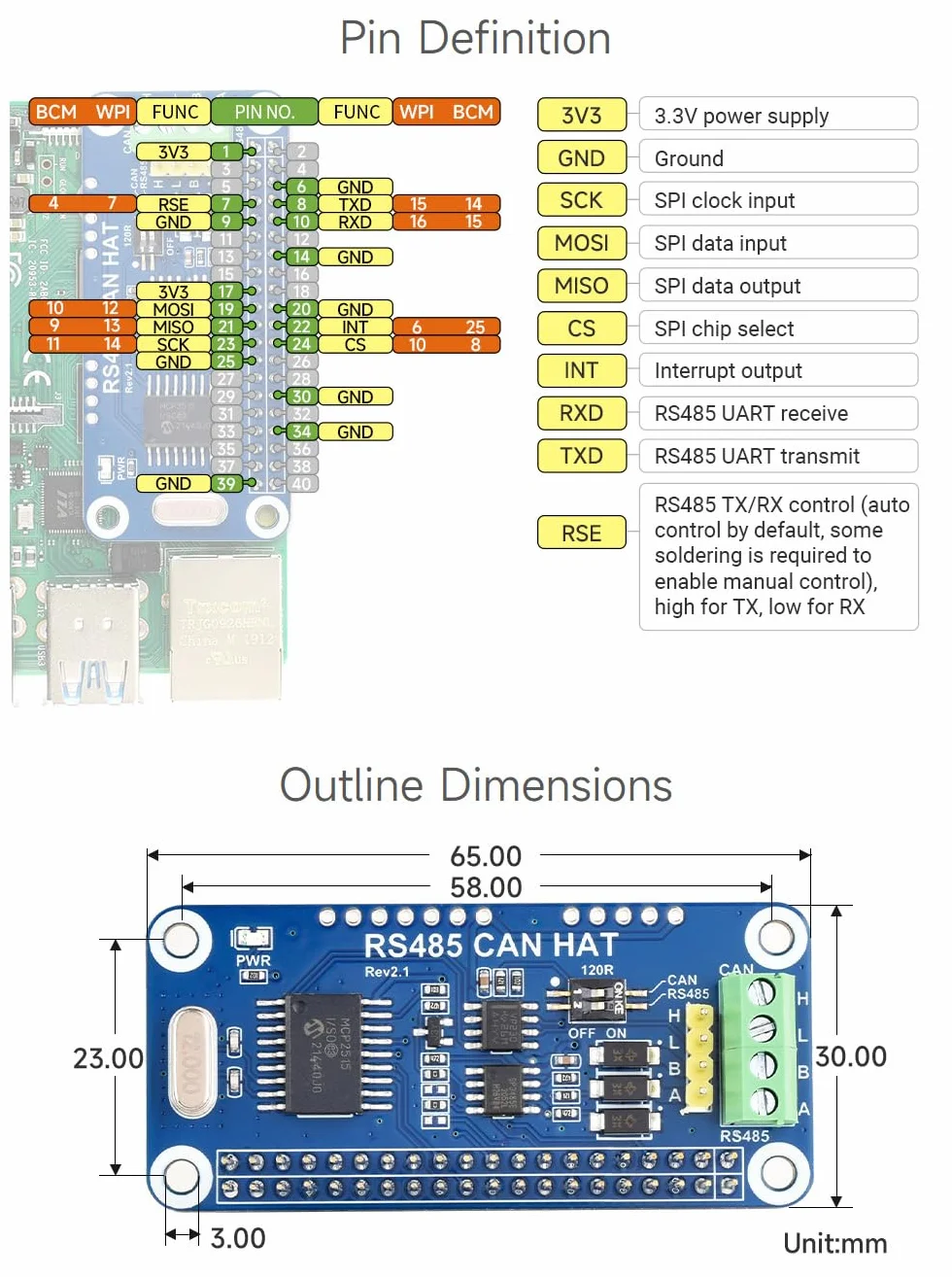

- Reserved control pins, allows to work with other control boards
- Comes with development resources and manual (examples in wiringPi/python)
